Power distribution facilities

Summary

Power distribution equipment is a key component responsible for ensuring a stable and safe power supply at power plants, substations, buildings, plants, and other power-using locations.ITI's power distribution equipment, in addition to basic power distribution functions, features leakage current limitation (5 mA or less) and IT system switching technology, ensuring a power supply free from electric shock, fire, and power outages.

Key Features

Predict and respond to electrical accidents.

  • Real-time monitoring of insulation status enables early detection of insulation resistance degradation.
  • Detects abnormalities before accidents occur, preventing electric shock, fire, and power outages.

Voltage and current imbalance correction.

  • alances unbalanced power supply.
  • Ensures stable power supply and improved equipment efficiency.

Limits leakage current to 5mA or less.

  • Limits current flowing to humans and equipment to 5mA or less in the event of ground faults, leakage currents, or direct/indirect contact.
  • Prevents electric shock, fire, and equipment damage.

Stable operation even during three-phase faults (additional feature).

  • Independent maintenance of insulation resistance and leakage current limiting functions.
  • Ensures normal operation of the entire system even in the event of a specific phase failure.

Early detection and recovery of electrical faults.

  • Real-time detection of faults such as poor connections, increased resistance, open circuits, and phase failures.
  • Prevents accidents from spreading with alarms and automatic actions.

Self-diagnosis and test function (additional feature).

  • Check device functions with the touch of a button.
  • Quickly confirm normal operation, regardless of skill level.

Expected effect

  • 01

    Preventing electric shock and fire accidents

    Zero on-site casualties and property damage

  • 02

    Ensuring power stability

    Continuous operation without power outages, improving productivity

  • 03

    Enhancing equipment reliability

    Extending equipment lifespan (dual lightning protection linked to SPDs), improving maintenance efficiency

  • 04

    Prevention-focused safety management

    Mitigating legal risks through pre-accident detection and response

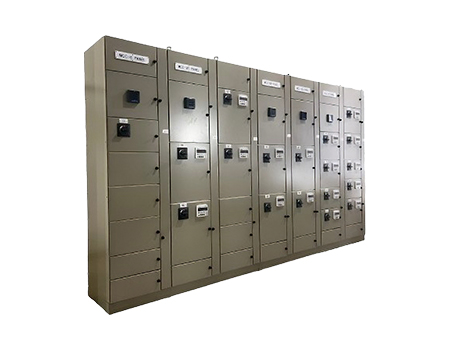

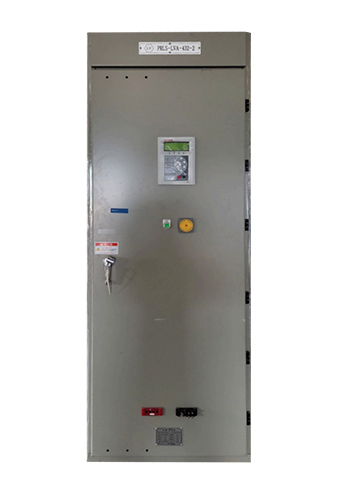

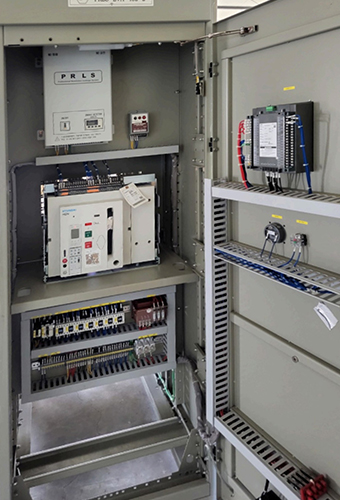

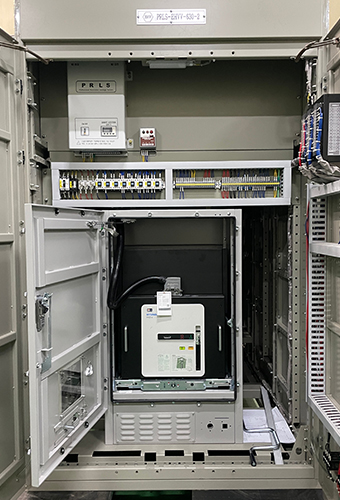

Summary

This is a facility that safely supplies power even in places where there is a risk of electric shock or fire, according to the Korean Industrial Standard (KS C IEC 60364-7-701~740 Special Facilities and Special Locations) where the operating voltage is 22.9kV or lower.
The distribution board is a key device installed in the electrical room to receive electricity supplied by KEPCO and distribute it stably to each site.

Key Features
  • Predict and respond to electrical accidents (real-time insulation resistance monitoring)
  • Limit leakage current to 5mA or less (to prevent electric shock and fire)
  • Early detection and recovery of electrical faults (detection of open circuits, phase failures, and poor connections)
  • Voltage and current imbalance compensation
  • KERI type test results secured
Securing Type Test Results
  • High Voltage: Passed dielectric strength, short-time current withstand, temperature rise, and mechanical operation tests.
  • Low Voltage: Passed structural inspection, insulation test (2.5kV), short-circuit strength, etc.
Built-in smart safety technology
  • Real-time insulation status monitoring
  • Leakage current limit of 5mA → Prevents electric shock and fire
  • Equipped with a fault current meter (SMPD-L) and insulation monitoring device (IMD)
Maintains stable power quality
  • Voltage and current imbalance compensation
  • Stable operation even in the event of phase loss or disconnection
Various field applications
  • High Voltage: Steel mills, power plants, large-scale plants, etc.
  • Low Voltage: Buildings, hospitals, schools, local government infrastructure, etc.
Specifications

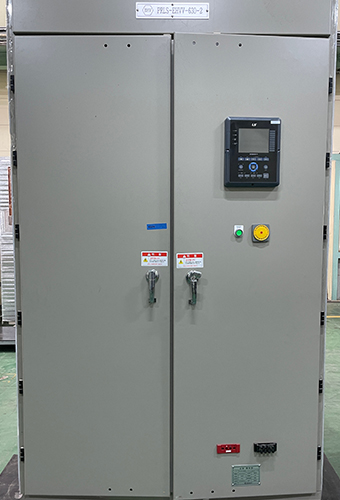

Format Specifications
Rated Voltage 22.9kV or less
Rated Current 600 ~ 5,000A
Rated Frequency 50 or 60Hz
Rated Short Time Current:1sec 8 ~ 65kA
Size W 600~3000 x H 2350~2850 x D 1500~3000 mm

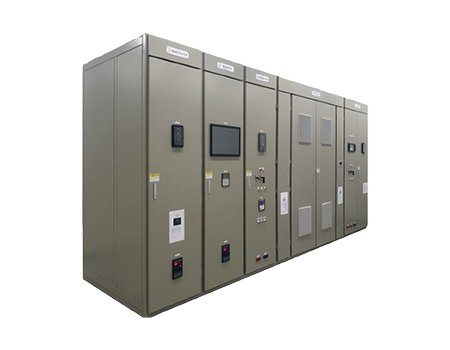

Summary

This is a facility that safely supplies power even in places where there is a risk of electric shock or fire, in accordance with the Korean Industrial Standard (KS C IEC 60364-7-701~740 Special Facilities and Special Places) where the operating voltage is 22.9kV or lower.
In particular, the core device that stably supplies the power required to operate the motor, installed in the **machine room, is the motor control panel (MCC)**.

Key Features
  • Predict and respond to electrical accidents (real-time insulation resistance monitoring)
  • Limits leakage current to 5mA or less (prevents electric shock and fire)
  • Built-in motor protection and control functions
  • Early detection and recovery of electrical faults (detection of open circuits, phase failures, and poor connections)
  • Voltage and current imbalance compensation
  • KERI type test results secured
Secured type test results
  • Passed insulation strength, temperature rise, short-circuit strength, and mechanical operation tests
  • KERI official test results ensure quality and safety

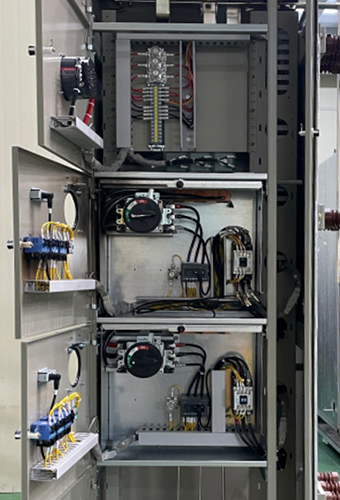

Optimized motor protection and control
  • Built-in overload, phase loss, and ground fault protection
  • Multi-motor automatic start/stop and sequential control can be applied according to customer requirements

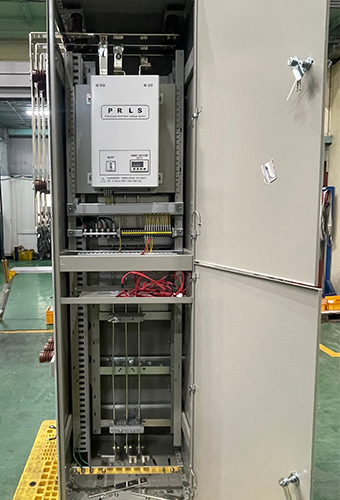

Built-in smart safety technology
  • Real-time insulation status monitoring
  • Leakage current limit of 5mA → Prevents electric shock and fire
  • Equipped with a fault current meter (SMPD-L) and insulation monitoring device (IMD)
Various field applications
  • Steel mill and plant motor lines
  • Building and industrial facility automation systems
  • Water treatment plant and pumping station motor operation
Maintains stable power quality
  • Voltage and current imbalance compensation
  • Stable operation even in the event of phase loss or wire breakage

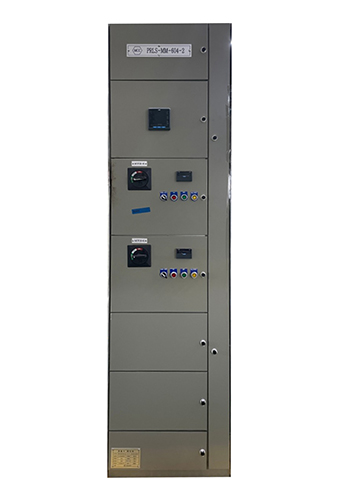

Specification
Format Specification
Rated Voltage 600V or less
Rated Current Horizontal busbar: 400 ~ 2500A Vertical busbar: MAX 800A
Rated Frequency 50 or 60Hz
Rated Short Time Current:1sec Max. 50kA
Size W 600 x H 2350 x D 600mm

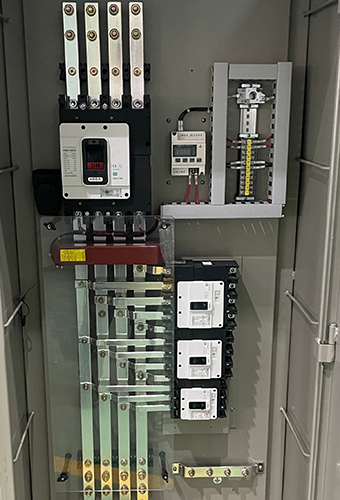

Summary

This is a facility designed to safely supply power even in places where there is a risk of electric shock or fire, in accordance with the Korean Industrial Standard **KS C IEC 60364-7-701~740 (Special Facilities and Special Locations Regulations)** where the operating voltage is 22.9kV or less. The distribution board is a key circuit facility that distributes and supplies power to machinery or buildings (houses, etc.) in special locations. It is installed in the electrical room and safely distributes the electricity supplied from KEPCO to each load. This minimizes the risk of electric shock, fire, and power outage, and ensures stable power use in various sites such as buildings, educational facilities, hospitals, and local government infrastructure.

Key Features
  • Predict and respond to electrical accidents (real-time insulation resistance monitoring)
  • Limits leakage current to 5mA or less (to prevent electric shock and fire)
  • Built-in motor protection and control functions
  • Voltage and current imbalance compensation
  • KERI type test results secured
Securing Type Test Results
  • Passed all tests, including structural inspection, insulation test (2.5kV), and short-circuit strength
Various field applications
  • Buildings (buildings, hospitals, schools), educational facilities, and local government infrastructure
Maintains stable power quality
  • Voltage and current imbalance compensation
  • Stable operation even in the event of phase loss or disconnection

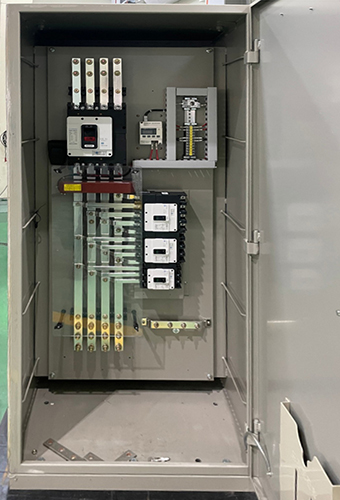

Built-in smart safety technology
  • Real-time insulation status monitoring
  • Leakage current limit of 5mA → Prevents electric shock and fire
  • Equipped with a fault current meter (SMPD-L) and insulation monitoring device (IMD)
Specification
Format Specification
Rated Voltage 600V or less
Rated Current Max. 1000A
Rated Short Time Current:1sec Max. 50kA
Enclosure type Exposed, recessed, wall-mounted
Enclosure material STEEL, SUS, etc.
