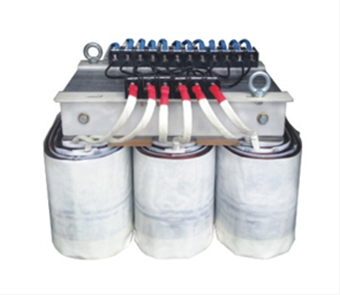

Open phase recovery

Key Features

This lottery-type model features a Y-connection for AC 380V and 440V input, and a DY11-connection for AC 380V and 440V output. It is manufactured in specialized products ranging from small to large sizes, including terminal blocks. All models utilize patented technology, offering a wide range of consumer choices. The insulation type is Type B, while Types F and H are available upon request.

Open-phase recovery period

WP Type

Models
Dry/150kW or more capacity, inflow type, mold, amorphous custom-made

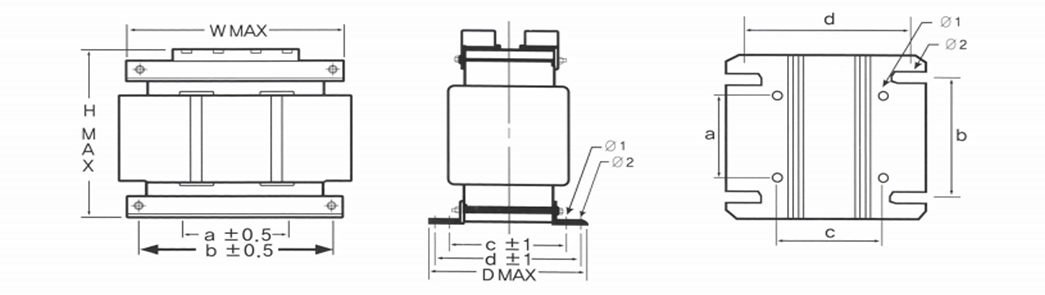

Model No. Specifications VA DIMENSIONS(mm) Weight (kg)
PRIMARY(V) SECONDARY(V) W H D a b c d (a,c)ø1 ø2
NO3P-500W 380-440v
Y-n
380-440v
-n
500 190 180 105 80 140 75 90 ø4.3 5.0X15 8.00
NO3P-1KW 1K 195 180 126 80 140 97 109 ø4.3 5.0X15 13.00
NO3P-1.5KW 1.5K 240 230 170 - 150 - 125 - 10X30 18.60
NO3P-2KW 2K 240 230 170 - 150 - 125 - 10X30 20.00
NO3P-3KW 3K 280 240 175 - 150 - 140 - 10X30 30.50
NO3P-5KW 5K 330 285 210 - 180 - 156 - 10X35 46.00
NO3P-7.5KW 7.5K 330 290 210 - 180 - 160 - 10X35 59.00
NO3P-10KW 10K 370 390 260 - 180 - 195 - 12X25 80.50
NO3P-15KW 15K 390 340 270 - 190 - 205 - 13X25 92.00
NO3P-20KW 20K 415 385 265 - 205 - 195 - 13X40 101.5
NO3P-30KW 30K 450 460 310 - 225 - 220 - 10X40 139.00
NO3P-50KW 50K 520 525 360 - 240 - 230 - 13 192.00
NO3P-75KW 75K 560 560 430 - 340 - 230 - 13 272.00
NO3P-100KW 100K 600 600 460 - 420 - 240 - 16 336.00
NO3P-150KW 150K 780 800 500 - 500 - 260 - 16 453.00
Key Features

It is manufactured as a Y-connected type for input AC 380V.440V and a DY11-connected type for output AC 380V.440V with built-in neutral line restoration, harmonic cancellation, and power imbalance restoration functions. It is manufactured as a specialized product from small to large size with terminal blocks, etc., and patented technology is used for all models to diversify the range of consumer choices. The insulation method is type B, and types F and H are manufactured upon order.

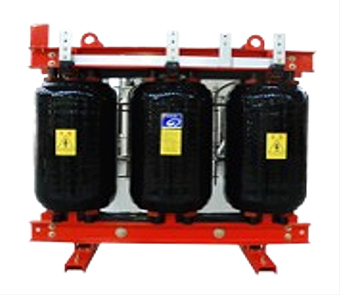

Harmonic offset machine

WP Type

Models
Model No. Specifications VA DIMENSIONS(mm) Weight (kg)
PRIMARY(V) SECONDARY(V) W H D a b c d (a,c)ø1 ø2
NH3P-500W 380-440v
Y-n
380-440v
-n
500 190 180 105 80 140 75 90 ø4.3 5.0X15 8.00
NH3P-1KW 1K 195 180 126 80 140 97 109 ø4.3 5.0X15 13.00
NH3P-1.5KW 1.5K 240 230 170 - 150 - 125 - 10X30 18.60
NH3P-2KW 2K 240 230 170 - 150 - 125 - 10X30 20.00
NH3P-3KW 3K 280 240 175 - 150 - 140 - 10X30 30.50
NH3P-5KW 5K 330 285 210 - 180 - 156 - 10X35 46.00
NH3P-7.5KW 7.5K 330 290 210 - 180 - 160 - 10X35 59.00
NH3P-10KW 10K 370 390 260 - 180 - 195 - 12X25 80.50
NH3P-15KW 15K 390 340 270 - 190 - 205 - 13X25 92.00
NH3P-20KW 20K 415 385 265 - 205 - 195 - 13X40 101.5
NH3P-30KW 30K 450 460 310 - 225 - 220 - 10X40 139.00
NH3P-50KW 50K 520 525 360 - 240 - 230 - 13 192.00
NH3P-75KW 75K 560 560 430 - 340 - 230 - 13 272.00
NH3P-100KW 100K 600 600 460 - 420 - 240 - 16 336.00
NH3P-150KW 150K 780 800 500 - 500 - 260 - 16 453.00
