Leakage current control device for construction sites

Summary

This smart safety device prevents electric shock and electrical fires by limiting leakage current generated at construction sites to 5mA or less. (KS C IEC TS 60479-1: Effects of Electric Current on Humans and Livestock)

Key Features

Safe power supply even in case of unavoidable accidents

Provides safe power without risk of electric shock to human body even in situations where power is cut off due to ground fault, leakage, or flooding.

Real-time insulation status monitoring

Automatically detects and notifies insulation loss in real time while the line is live, preventing electrical accidents such as ground faults and leakage currents before they occur.

Application to construction sites

Mobile leakage current control devices are newly designated as part of the 2025 Safe Workplace Creation Support Project, enabling government support and industrial safety and health management expenses for construction headquarters and on-site sites.

Meeting legal and technical standards

Technology that complies with construction site electrical equipment standards such as KSC IEC 60364-7-704 and has been proven effective in preventing electric shock accidents.

Differences from existing equipment

Conventional temporary power unit
Failure to meet electrical installation technical standards due to risk of electric shock, fire, or death Illegal
VS
Intelligent Temporary Power Team
Equipped with electric shock and fire prevention technology, eligible for government certification and subsidies Legal Recommended Use
In other words, the intelligent temporary power unit is a device that eliminates the illegality of conventional temporary power units and simultaneously secures legality and safety.
Purpose

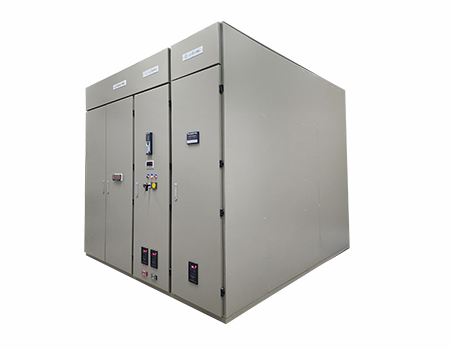

for large construction sites - high-pressure water supply

Standard

100~950kVA

Specification
Format Specification
Rated Voltage 22.9kV/380-220V
Rated Current 200 ~ 1600A
Rated Frequency 50 or 60Hz
Rated Short Time Current:1sec 37 ~ 100kA
Size Applies to capacity (see model)
Models
No. Product name Model name Standard Outer case(mm) Note
W H D

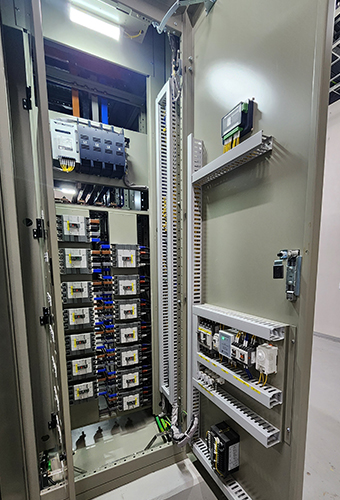

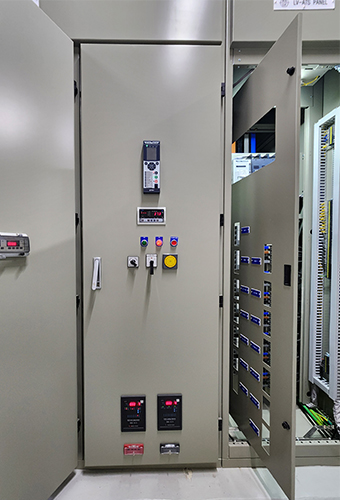

1 Smart Safety Equipment
Integrated Distribution Board

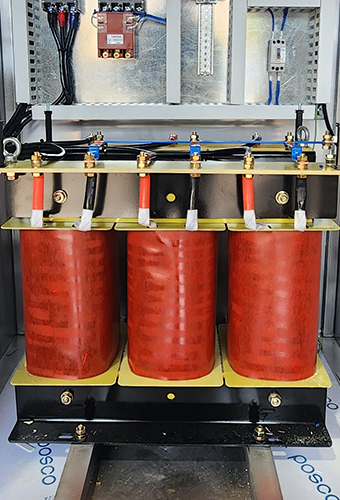

- Cast-Type Transformer
ITE-SH·LV-MT-100 22.9kV/380-220V 100kVA 2000 2850 3000 Drawing reference
2 ITE-SH·LV-MT-150 150kVA 2000 2850 3000
3 ITE-SH·LV-MT-200 200kVA 2000 2850 3000
4 ITE-SH·LV-MT-250 250kVA 2000 2850 3000
5 ITE-SH·LV-MT-300 300kVA 2000 2850 3000
6 ITE-SH·LV-MT-400 400kVA 2200 2850 3000
7 ITE-SH·LV-MT-500 500kVA 2200 2850 3000
8 ITE-SH·LV-MT-600 600kVA 2200 2950 3200
9 ITE-SH·LV-MT-750 750kVA 2200 2950 3200
10 ITE-SH·LV-MT-900 900kVA 2400 3050 3200
11 ITE-SH·LV-MT-950 950kVA 2400 3050 3200
12 Smart Safety Equipment
Integrated Distribution Board
-Immersed Transformer
ITE-SH·LV-OT-100 22.9kV/380-220V 100kVA 2000 2850 3000
13 ITE-SH·LV-OT-150 150kVA 2000 2850 3000
14 ITE-SH·LV-OT-200 200kVA 2000 2850 3000
15 ITE-SH·LV-OT-250 250kVA 2000 2850 3000
16 ITE-SH·LV-OT-300 300kVA 2000 2850 3000
17 ITE-SH·LV-OT-400 400kVA 2200 2850 3000
18 ITE-SH·LV-OT-500 500kVA 2200 2850 3000
19 ITE-SH·LV-OT-600 600kVA 2200 2950 3200
20 ITE-SH·LV-OT-750 750kVA 2200 2950 3200
21 ITE-SH·LV-OT-900 900kVA 2400 3050 3200
22 ITE-SH·LV-OT-950 950kVA 2400 3050 3200
Purpose

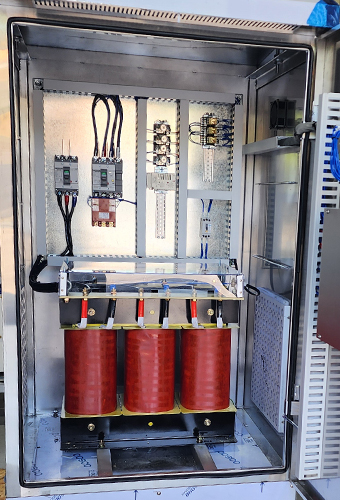

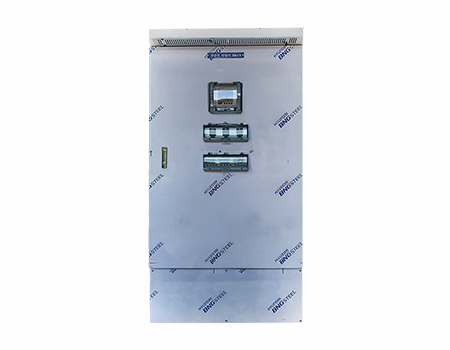

mid-high-capacity temporary power - low-voltage water supply

Standard

10~150kVA

Specification
Format Specification
Rated Voltage 380/380-220V
Rated Current 20 ~ 300A
Rated Frequency 50 or 60Hz
Rated Short Time Current:1sec 5 ~ 50kA
Size Applies to capacity (see model)
Models
No. Product name Model name Standard Outer case(mm) Note
W H D

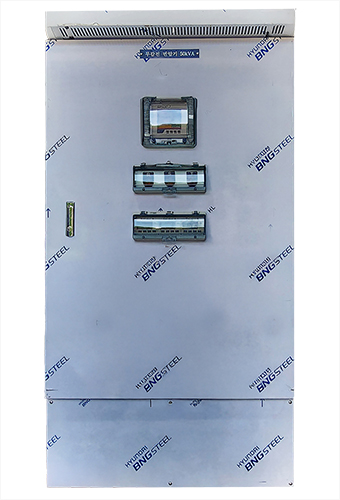

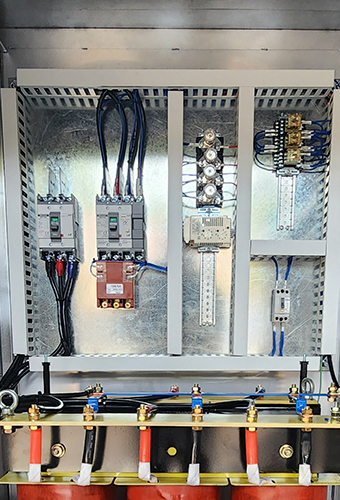

1 Smart Safety Equipment
Temporary Distribution Board
ITE-SLV- D-10 380V/380-220V 10kVA 600 850 350
2 ITE-SLV- D-15 15kVA 600 850 350
3 ITE-SLV- D-20 20kVA 600 900 350
4 ITE-SLV- D-30 30kVA 700 1000 500
5 ITE-SLV- D-40 40kVA 700 1200 600
6 ITE-SLV- D-50 50kVA 800 1250 600
7 ITE-SLV- D-75 75kVA 800 1250 600
8 ITE-SLV- D-100 100kVA 900 1350 600
9 ITE-SLV- D-150 150kVA 1000 1550 600 Main250AF
Purpose

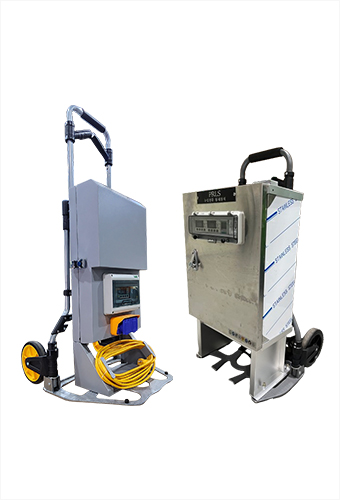

Individual power connection for workers

Standard

10kVA or less

Specification
Format Specification
Rated Voltage 220V/220V
380V/380-220V
Rated Current Single-phase 40A or less Three-phase 15A or less
Rated Frequency 50 or 60Hz
Rated Short Time Current:1sec 2.5 ~ 10kA
Size See model
Models
Products exceeding 10kVA of three phases are supplied as low-voltage power supply devices for smart safety equipment and are equipped with wheels for easy movement.
※ Products with non-standard rated voltages can be manufactured as custom orders.
No. Product name Model name Standard Outer case(mm) Weight (kg) Note (with outlet attached)
W H D

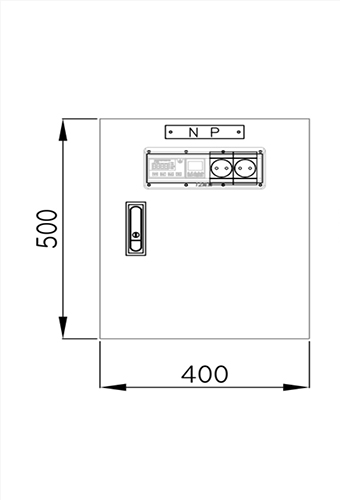

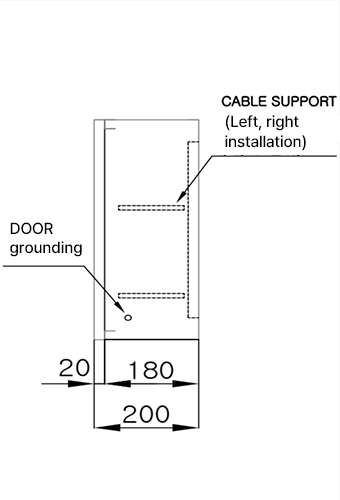

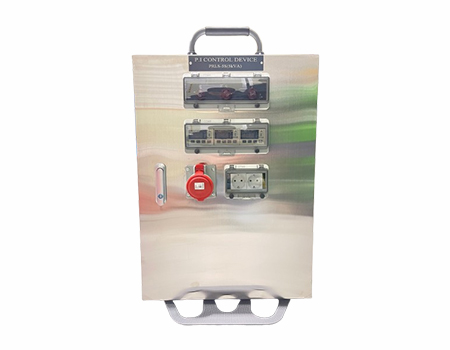

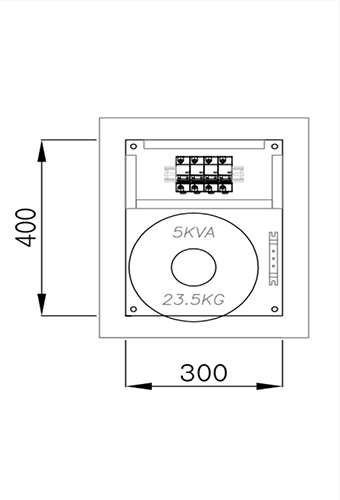

1 Smart Safety Equipment Temporary Distribution Board - Single Phase ITE-SP-P-M-5(S) 220V 5kVA 400 500 200 36.32kg 2 pieces (16A X 2)
2 ITE-SP-P-M-7.5(S) 7.5kVA 400 600 200 47.88kg 2 pieces (16A X 2)
3 ITE-SP-P-M-10(S) 10kVA 500 600 200 55.88kg 2 (16AX1, 32AX1) or 3 (16AX3)
4 Smart Safety Equipment (Portable Power Supply Unit - Three-Phase) ② Temporary distribution board (temporary power for small and medium-sized sites - low-voltage water supply): Applicable to models 10-150kVA → Supplied with wheels for easy movement.
